AOI XI-500 Adhesive Defect Inspection Machine

Semiconductor Packaging process flux and undersell glue optical inspection equipment,

which can measure glue width, glue overflow, glue shortage, glue creep and other related conditions

Brand：Leadinway
SKU：XI-500

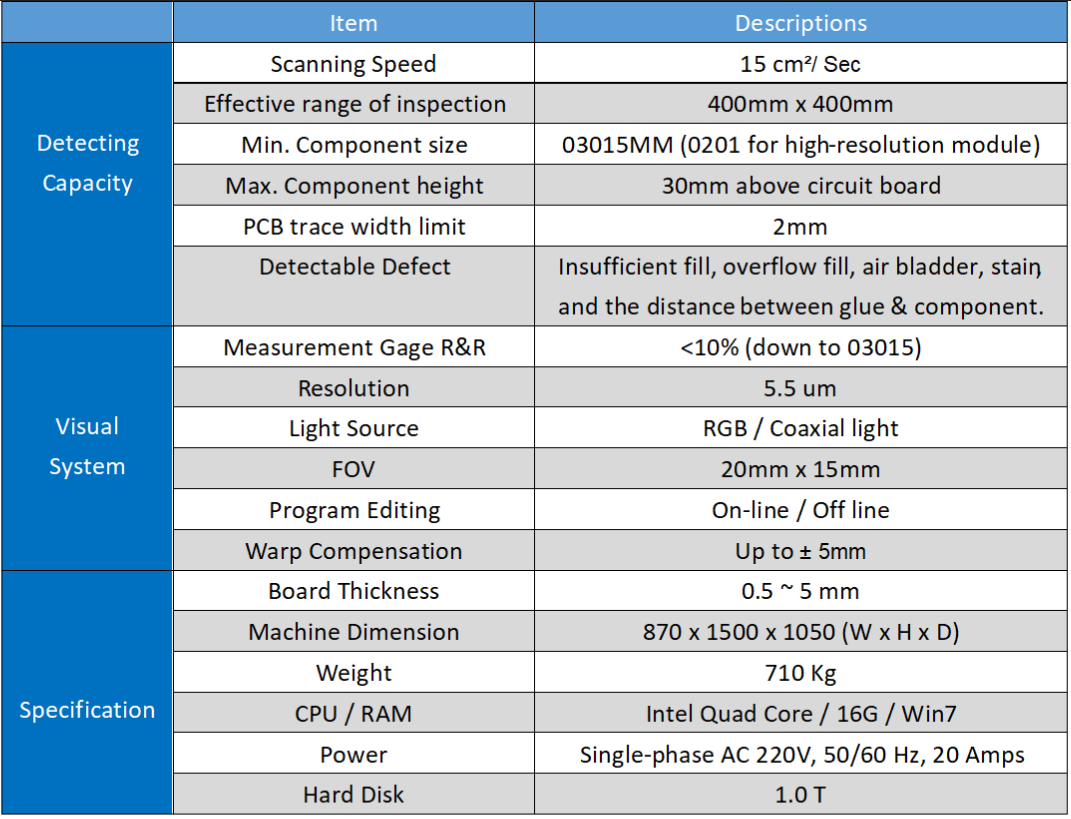

Product Introduction：

Lens pixels：12 Million Pixels
Resolution：5.5um
Inspection speed (5um)：15cm²/sec
Dimensions: W: 870(mm) / H: 1484(mm) / D: 1150(mm)
Effective range of detection：400mm x 400mm

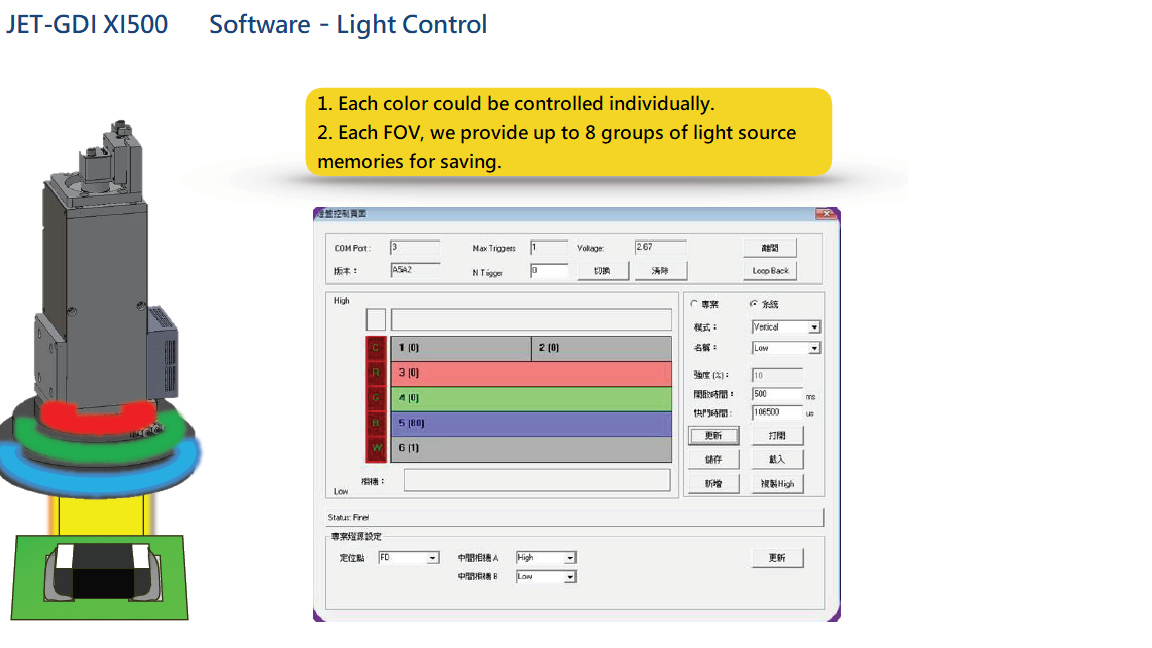

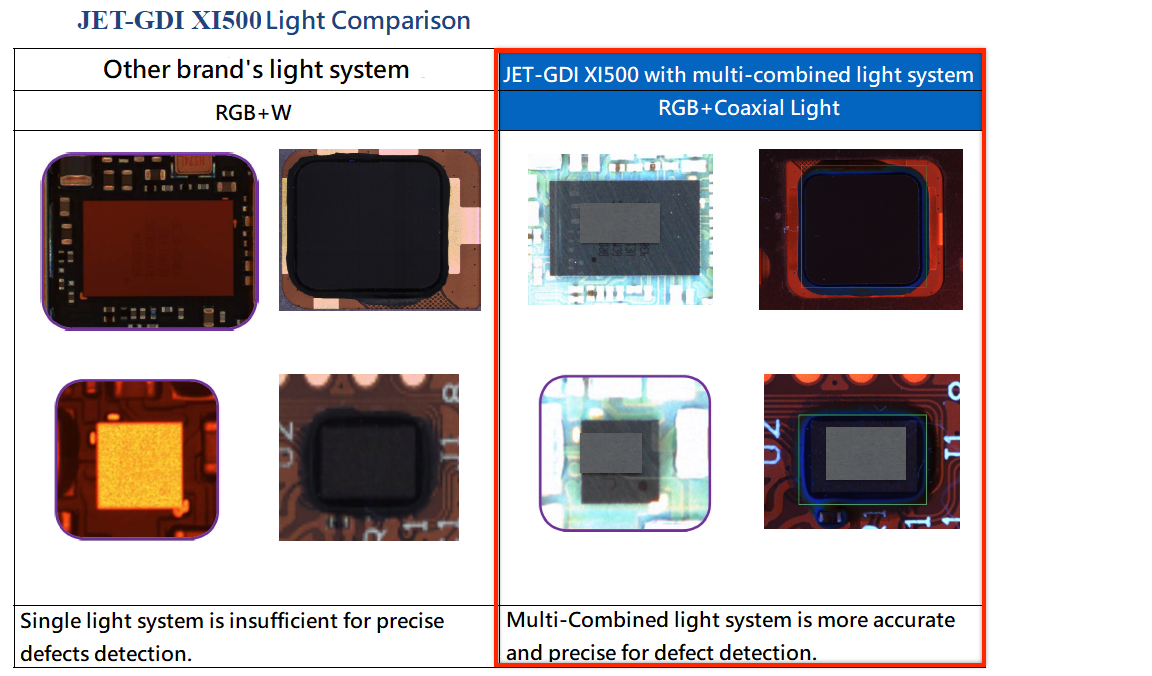

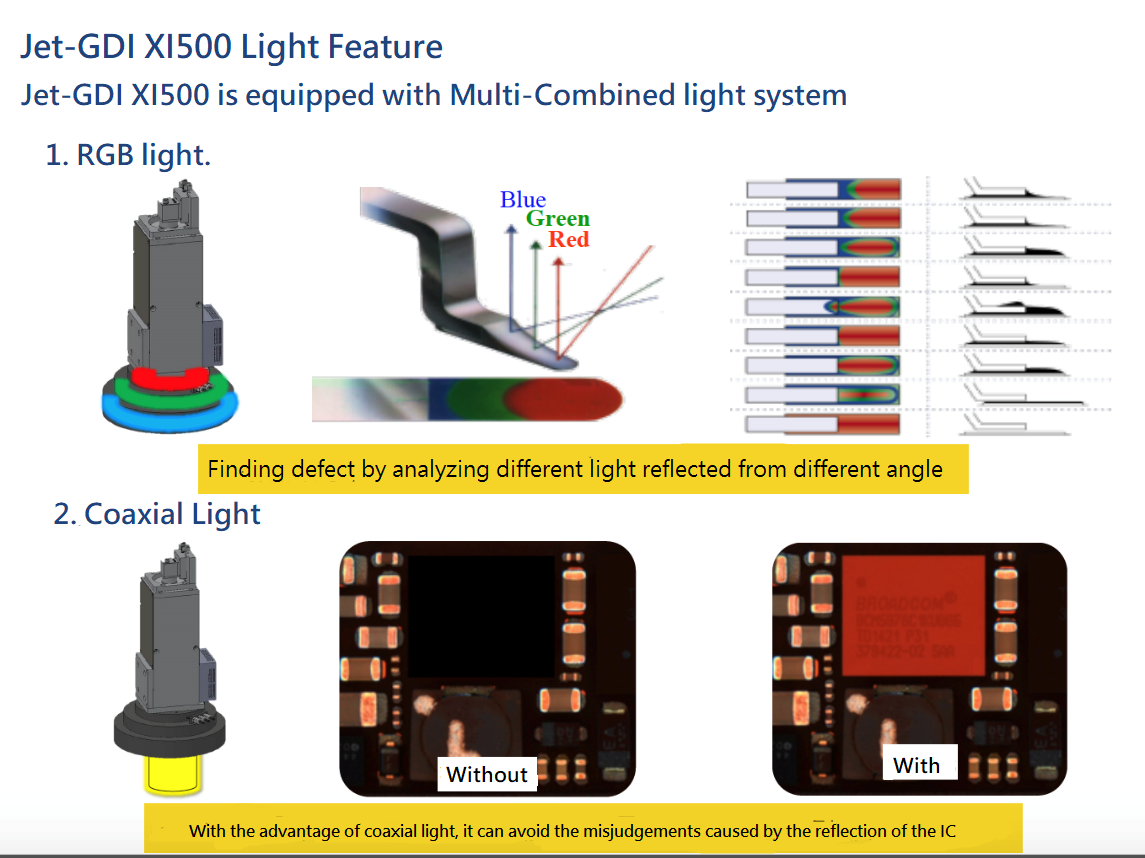

Multi-combined detection light source：RGB Light/ Coaxial Light
Multitasking：One vs four workstations
Graphical operation interface / Statistical process analyzing system.
Centralized remote reviewing/programming system.

Leadinway

Brand Introduction：

Uses a variety of exclusive control technologies-even in the advanced assembly process(reflow) of various composite materials, it can still easily achieve fast and accurate bonding.
