HT Ceramic Bead Mill

All ceramic grinding parts are free of metal contamination.

The HT Series features a unique dynamic gap design that reduces clogging and is suitable for applications with viscosities below 30,000 cps.

Product Introduction：

Feature



  • Ceramic Mill (Zirconia) Components - Avoid metal pollution、increase erosion resistant、wear resistance
  • Patented Central Feeding System - Improves grinding uniformity, reduces grinding pressure and wear on grinding components｜Patent No.: TWM633742U
  • Medium To High Viscosity Grinding Design - Suitable for slurries with viscosities up to 30,000 cps
  • Grinding Media - Suitable for zirconia beads of 0.6mm and above
  • Dynamic Gap and Dynamic Overlay Plate Design - Reduces material clogging issues ●
  • Silicon Carbide Grinding Chamber - Extremely high wear resistance & excellent cooling capability ●
    Note: Wear resistance is 6 times that of zirconia
  • Smart Production - Mobile app functionality, production formula parameter settings,flash data storage, computer monitoring, and optimized for Industry 4.0 smart manufacturing

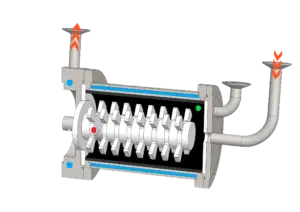

Grinding Chamber Schematic Diagram





HT Dynamic Filter Design







Successful Case







Application

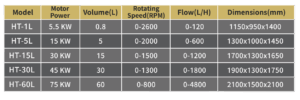

Specification



HOUCHI MACHINE

Brand Introduction：

Uses a variety of exclusive control technologies-even in the advanced assembly process(reflow) of various composite materials, it can still easily achieve fast and accurate bonding.
