Device Dynamics Lab-DDA8010

Device Dynamics Analyzer 8010 (DDA8010) is designed to provide the most general dynamic characterization of packaged power GaN device. It’s intended to target foundry and design house during the research & development phase.

SKU：DDA-8010

Product Introduction：

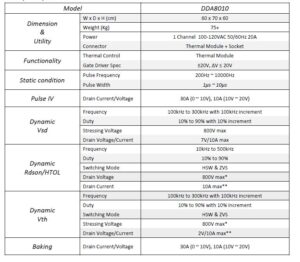

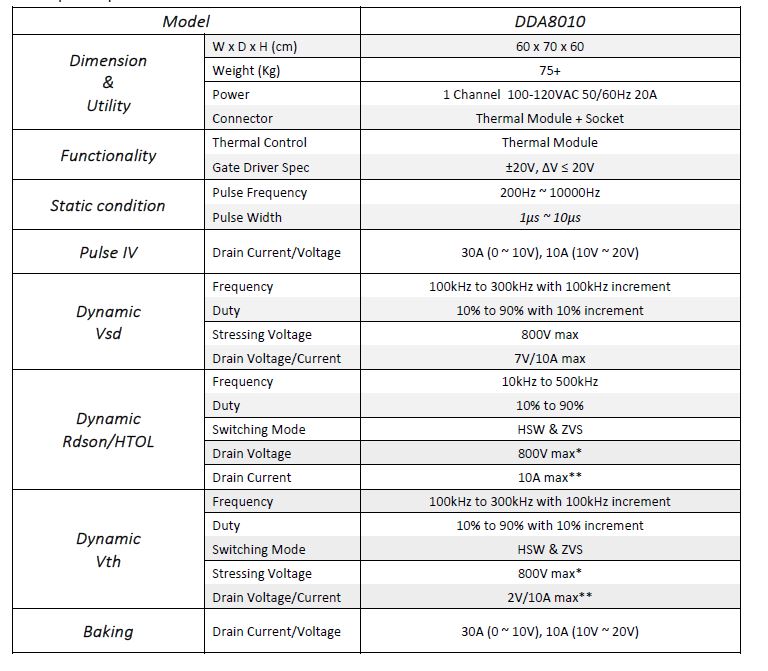

Technical Specifications

Category / Feature DDA8010 Specification
Dimension (W x D x H) 60 x 70 x 60 cm
Weight 75+ Kg
Max Stressing Voltage 800V max*
Dynamic Rdson Frequency 10kHz to 500kHz
Max Drain Current 10A max** (Pulsed: 30A)
Pulse Width Range 1µs ~ 10µs
Test Capability Dynamic Vsd / Rdson / HTOL / Vth / Pulse IV

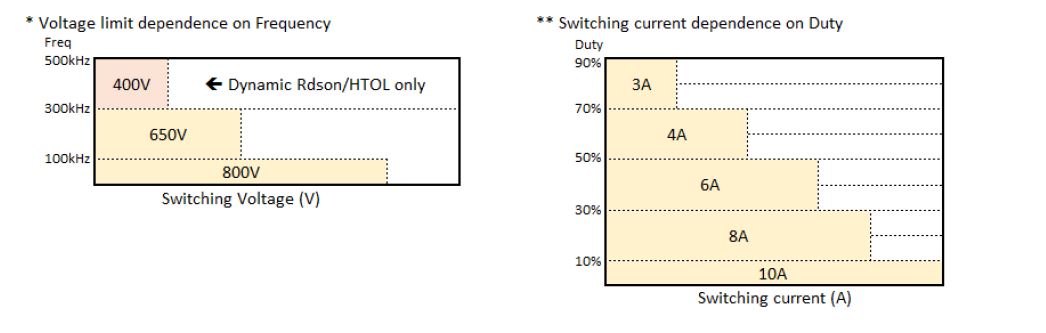

* Voltage Limit vs. Frequency: 800V (up to 100kHz), 650V (up to 300kHz), 400V (up to 500kHz).
** Switching Current vs. Duty: 10A (@10% duty), 3A (@90% duty).
